Does a cooker need an isolator switch?

Yes, the wiring regulations require a local isolator switch that is close by the oven, such that the oven can safely be isolated for both maintenance and in the event of an emergency.

What does the isolator switch do?

In electrical engineering, a disconnector, disconnect switch or isolator switch is used to ensure that an electrical circuit is completely de-energized for service or maintenance.

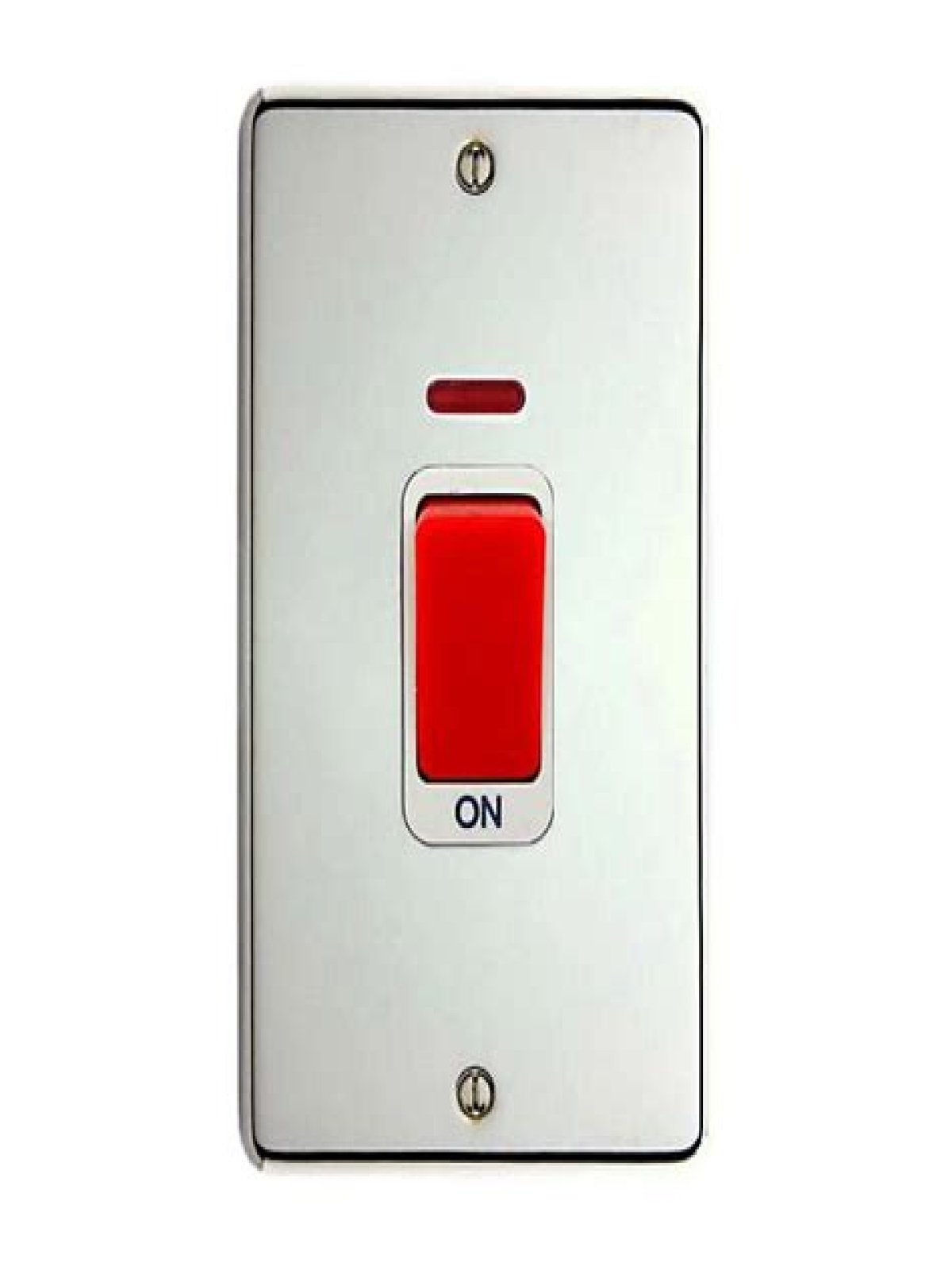

What is a cooker isolator?

Cooker switches provide a convenient way of installing the electrical cooking appliance rather than using a traditional plug and socket. … A cooker control unit contains both the cooker switch and a cooker socket, which can act as an isolator.

Do you need isolators for kitchen appliances?

Local isolation is generally required for all items of electrical equipment for maintenance, service & repair. … Depending on the maximum demand of the electrical appliance the means of local isolation could be a 13 amp switch fused spur, 13A plug and socket outlet or a 20 amp double pole isolator.

Is a cooker switch an emergency switch?

The wiring regulations do make mention of a ‘Cooker Control Unit Switch‘ which, when compliant with BS4177, is considered suitable for isolation, emergency switching and functional switching (table 53.4). As it can be used for emergency switching, other regulations apply including 537.4.

When would you use an isolator switch?

Isolator switches are used for opening an electrical circuit in the no-load condition. It is not proposed to be opened while current flows through the line. Generally, these are employed on circuit breaker both the ends thus the circuit breaker repair can be done easily without any risk.

Can a cooker switch be above the cooker?

In some scenarios there may not be enough space in the kitchen to install cooker switches, sockets or spurs 300mm away from a hob or oven. … Sockets, switched fused spurs, light switches, cooker switches and hob isolators should not be installed behind or directly above a hob or oven.

Can cooker isolation switch go in cupboard?

Answer: It is acceptable to mount a cooker switch in a cupboard, provided that the switch is readily accessible.

What are the advantages of isolator?

Benefits or advantages of Isolator When it is connected between source and load, Isolator helps to eliminate variations in output power from the source as it blocks any reflections going towards source from the load. Moreover it avoids frequency pulling due to changing loads.

Article first time published on

Where do you place a cooker switch?

The switch or control unit should be readily accessible. It should not be positioned behind or above a cooking appliance such that a person would have to reach over the appliance in order to access the switch/control unit.

Does a cooker switch need to be above worktop?

Principal rule for siting cooker controls is “within two metres of the appliance, but not directly above it.” You just need to take precautions as to exactly where you put it to avoid effects of heat on adjacent accessories.

Does a cooker hood need an isolator switch?

The socket should feed the fused connection unit, which will also act as an isolator for the cooker hood. This is then connected to the cooker hood. You don’t need the additional fan isolator.

Where should I put my isolator switch?

The isolator should be located adjacent to the fan outwith Zones 0, 1 and 2 in accordance with Section 701 of BS 7671:2008 (2015). The switch need not necessarily interrupt the neutral conductor.

Why does my cooker switch keep tripping?

An earth leakage or dead short is the most common causes of RCD and fuse trips, which may occur each time you switch the appliance on. … Incorrectly placed terminal blocks are a normal occurrence in new appliances. Hob installers also often make the mistake of interchangeably placing the terminals.

Can an electrician fit an isolation switch?

An isolation switch is designed to act as a circuit breaker on the mains electrical supply, so that any electrical work that needs to take place within a property can be completed safely by a private electrician.

How much does it cost to fit an isolation switch?

The cost of the installation is £120. This is reduced to £60 if you’re having a smart meter installed at the same time. To book an isolator switch installation, or a combined isolator switch and smart meter installation, contact us.

What is the difference between isolator and disconnect switch?

Isolators and Disconnectors are types of simple mechanical switch. Circuit Breaker is operated Automatically and Manually. Isolator and Disconnector are operated Manually. … Isolator is an OFF-Load Device i.e. Disconnector can be operated when the power supply is totally OFF.

Does a cooker need a switch?

9 Answers from MyBuilder Electricians Regulatory speaking, there is no mandatory requirement for you to have a cooker isolator. Cookers can be wired directly into the distribution board.

Can hob and cooker on same circuit?

12 Answers from MyBuilder Electricians Yes, it can go on the same circuit, you can have up to 15kw in a domestic situation on a 6mm cable and 32 amp mcb after applying diversity.

What is the difference between an over and a cooker?

What is the difference between a cooker and an oven? A cooker is a freestanding, all-in-one unit that contains at least one oven and a hob. … An oven refers to just the appliance used for roasting and baking, which can be bought and installed separately from a hob.

What are the pros and cons of isolation?

How does a cooker switch work?

All electric cookers must be installed using a double pole switch! With a standard switch installed on a circuit, when it’s turned off it interrupts the live wire of the circuit – the switch breaks the connection in the live wire.

How close can a cooker switch be to the cooker?

Some guidance we found recommends a minimum distance from 100mm, however 300mm is the preferred distance up to a maximum distance of 2 meters and certainly not directly behind the hob.

What is the difference between an isolator and a switch?

Circuit breakers stop the flow of current to an entire circuit, while isolator switches cut off only part of the circuit. Isolator switches are offload devices, meaning that the requisite part of the circuit is only isolated after the current has been stopped.
