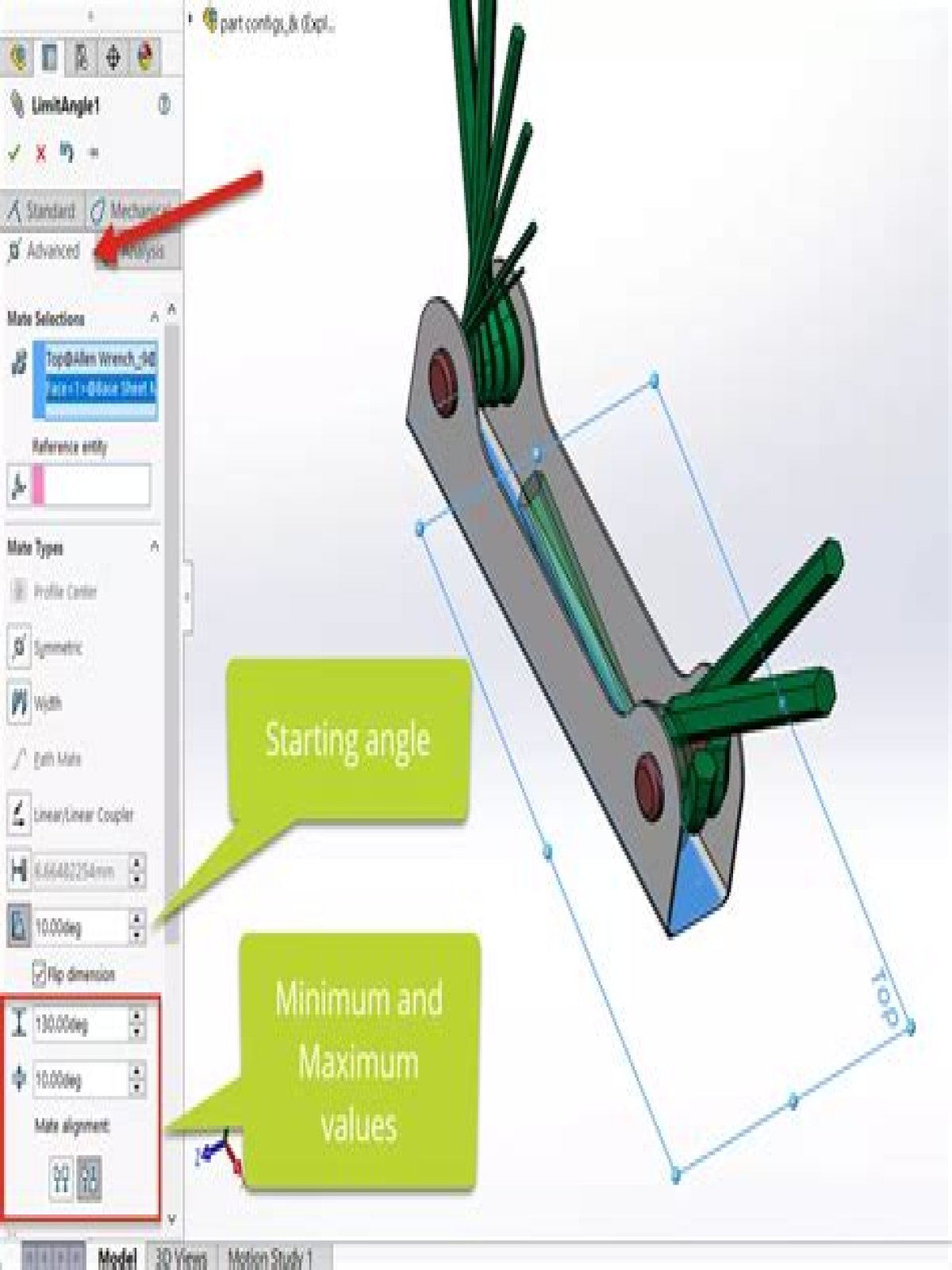

Click Mate (Assembly toolbar) or Insert > Mate.In the PropertyManager, click the Advanced tab.Under Mate Selections, for Entities to Mate , select the entities to mate.Under Mate Type: Click Distance or Angle . … Click . A LimitDistance or LimitAngle mate is added to the assembly.

Table of Contents

How do you fix mates in Solidworks?

  1. Drag a component to snap it into place.
  2. Suppress and unsuppress the affected mates.
  3. If the components are far from their correct positions, suppress some of their mates, move the components closer to their correct positions, then unsuppress the mates.

What type of mate allows for relative motion within a limited range?

Limit mates allow components to move within a range of values for distance and angle mates.

How do you limit a distance in Solidworks?

  1. Click Distance or Angle .
  2. Specify Distance or Angle to define the starting distance or angle.
  3. Select Flip Dimension to move the entities to opposite sides of the dimension.
  4. Specify Maximum Value and Minimum Value to define the maximum and minimum extents of the limit mate.

How do I edit a mate in Solidworks?

  1. Expand the Mates folder in the FeatureManager design tree. …
  2. In the PropertyManager, select the mate to edit and change the options. …
  3. To replace one entity with another, click the entity to replace in the Mate Selections box, press Delete, then select the new entity.
  4. Click .

How do you stop collision in Solidworks?

Select Stop at collision to stop the motion of the component when it touches any other entity. The faces that touch the component you are moving are highlighted.

Where is the Mate tool in Solidworks?

To add a mate: Click Mate (Assembly toolbar), or click Insert > Mate. In the PropertyManager, under Mate Selections, select the entities that you want to mate together for Entities to Mate .

How do I lock rotation in SolidWorks assembly?

To lock rotation on all concentric mates in an assembly, in the FeatureManager design tree, right-click the Mates folder and click Lock Concentric Rotation.

How do I set angle mates in SolidWorks?

Click Mate (Assembly toolbar) or Insert > Mate. In the Mate PropertyManager, for Entities to Mate , select two entities in the graphics area or the flyout FeatureManager design tree. Under Standard Mates, click Angle and set the dimension.

What does lock mate do in SolidWorks?

A Lock mate maintains the position and orientation between two components. The components are fully constrained relative to each other. A Lock mate has the same effect as forming a subassembly between the two components and making the subassembly rigid.

Article first time published on

How do you lock a part in SolidWorks?

  1. choose the part from the FeatureManager Design tree.
  2. right click on the name of the part.
  3. Select Fix ( To fix the part), Float (To make the part move)

What is physical dynamic?

Physical Dynamics is an option in Collision Detection that allows you to see the motion of assembly components in a realistic way. With Physical Dynamics enabled, when you drag a component, the component applies a force to components that it touches. … Physical Dynamics propagates throughout the assembly.

How do you update mates in Solidworks?

To update the mates: In the FeatureManager design tree, right-click one of the following and click Automatic Update for Toolbox Mates: Mates folder. Fasteners subfolder in the Mates folder.

How do you delete mates in Solidworks?

  1. Click the mate in the FeatureManager design tree.
  2. Take one of the following actions: Press the Delete key. Click Edit > Delete. Right-click and click Delete.
  3. Click Yes to confirm the deletion.

What is mate reference in Solidworks?

Mate references specify one or more entities of a component to use for automatic mating. When you drag a component with a mate reference into an assembly, the SOLIDWORKS software tries to find other combinations of the same mate reference name and mate type.

What are the different mates in SolidWorks?

Standard mates include angle, coincident, concentric, distance, lock, parallel, perpendicular, and tangent mates. Advanced mates include limit, linear/linear coupler, path, profile center, symmetry, and width mates.

How do I use Smart mates in SolidWorks?

  1. Click Move Component on the Assembly toolbar.
  2. In the PropertyManager, under Move, click SmartMates .
  3. Double-click a component, then click a valid mate partner. The Mate pop-up toolbar appears.
  4. Add a SmartMate, then click .
  5. Click in the PropertyManager.

How do you use hinge mate in Solidworks?

  1. Click Mate (Assembly toolbar) or Insert > Mate.
  2. In the PropertyManager, on the Mechanical tab, click Hinge .
  3. Under Mate Selections, make selections and specify options: Concentric Selections . Select two entities. …
  4. Click . Hinge appears in the Mates folder in the FeatureManager design tree.

How do you make mechanical mates in Solidworks?

In SOLIDWORKS, creating this mate is done by simply selecting the closed loop of tangent faces that define the cam and the face or point on the follower that will be in contact with the cam.

How do you make a path mate in Solidworks?

  1. Click Mate (Assembly toolbar) or Insert > Mate.
  2. In the PropertyManager, under Advanced Mates, click Path Mate .
  3. Under Mate Selections: …
  4. Under Advanced Mates, for Path Constraint, select one: …
  5. For Pitch/Yaw Control, select one: …
  6. For Roll Control, select one: …
  7. Click .

How do you rotate a mate in Solidworks?

Click Rotate Component (Assembly toolbar) or Tools > Component > Rotate. The Rotate Component PropertyManager appears, and the pointer changes to . Select one or more components in the graphics area. Select a component and drag in any direction.

How do you keep collision detection on in Solidworks?

  1. Click Move Component or Rotate Component (Assembly toolbar).
  2. In the PropertyManager, under Options, select Collision Detection.
  3. Under Check between, select: …
  4. Select Dragged part only to check for collisions with only the components that you selected to move.

How do you switch between configurations in an assembly?

  1. In an assembly, right-click a component and click Configure Component .
  2. In the Modify Configurations dialog box, you can: Create new assembly configurations. Change the component configuration used in each assembly configuration.

How do you stack parts in Solidworks?

Right-click Smart Fastener in the FeatureManager design tree and select Edit Smart Fastener. In the PropertyManager, under Results, select the Group to which you want to add a washer. Under Series Components, select a washer in Add to Top Stack. The washer is added to Top Stack .

What is lock rotation in Solidworks?

You can prevent the rotation of components that are mated with concentric mates by selecting the Lock rotation option. Locked concentric mates are indicated by an icon. in the FeatureManager design tree. You cannot lock concentric mates when a referenced component is over-defined.

How do you rotate a component in an assembly in Solidworks?

Click Rotate Component (Assembly toolbar) or Tools > Component > Rotate. The Rotate Component PropertyManager appears, and the pointer changes to . Select one or more components in the graphics area. Select a component and drag in any direction.

How do you animate in Solidworks?

  1. From a motion study, drag the time bar to set the duration of the animation sequence. …
  2. Drag the assembly component to the end position of the animation sequence.
  3. Right-click to place a key, or select Autokey (Animation only) to place a key automatically.
  4. To animate other assembly components:

How do I turn on the freeze bar in Solidworks?

To turn on the freeze bar, click Tools > Options > System Options > General and select Enable Freeze bar. To freeze features: Move the pointer over the freeze bar.

When you disable the setting automatic update for Toolbox mates what will happen?

By disabling the automatic update, you can improve performance by making it quicker to edit mates, add mates, and manipulate components. When you disable automatic mate updates: Toolbox fasteners do not move if you move the components to which they are mated.

How do you remove a Lockmate in Solidworks?

Click the mate in the FeatureManager design tree. Do one of the following: Press the Delete key. Click Edit > Delete.

How do you ignore interference in SolidWorks simulation?

  1. In an assembly document, click Tools > Evaluate > Interference Detection.
  2. In the PropertyManager, in Selected Components, click Calculate. …
  3. Optionally, in the Results list, right-click a value and click Sort Largest to Smallest or Sort Smallest to Largest.
